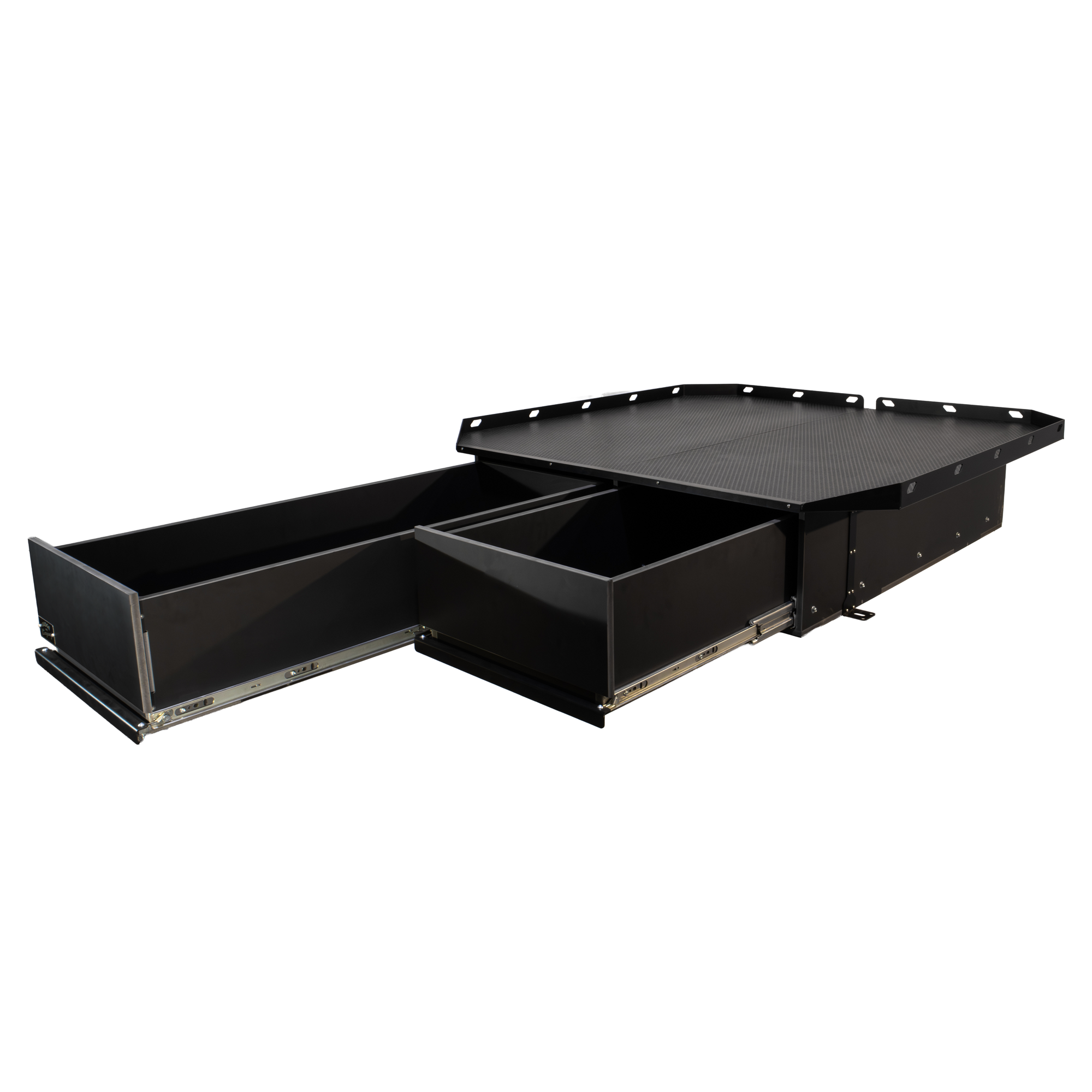

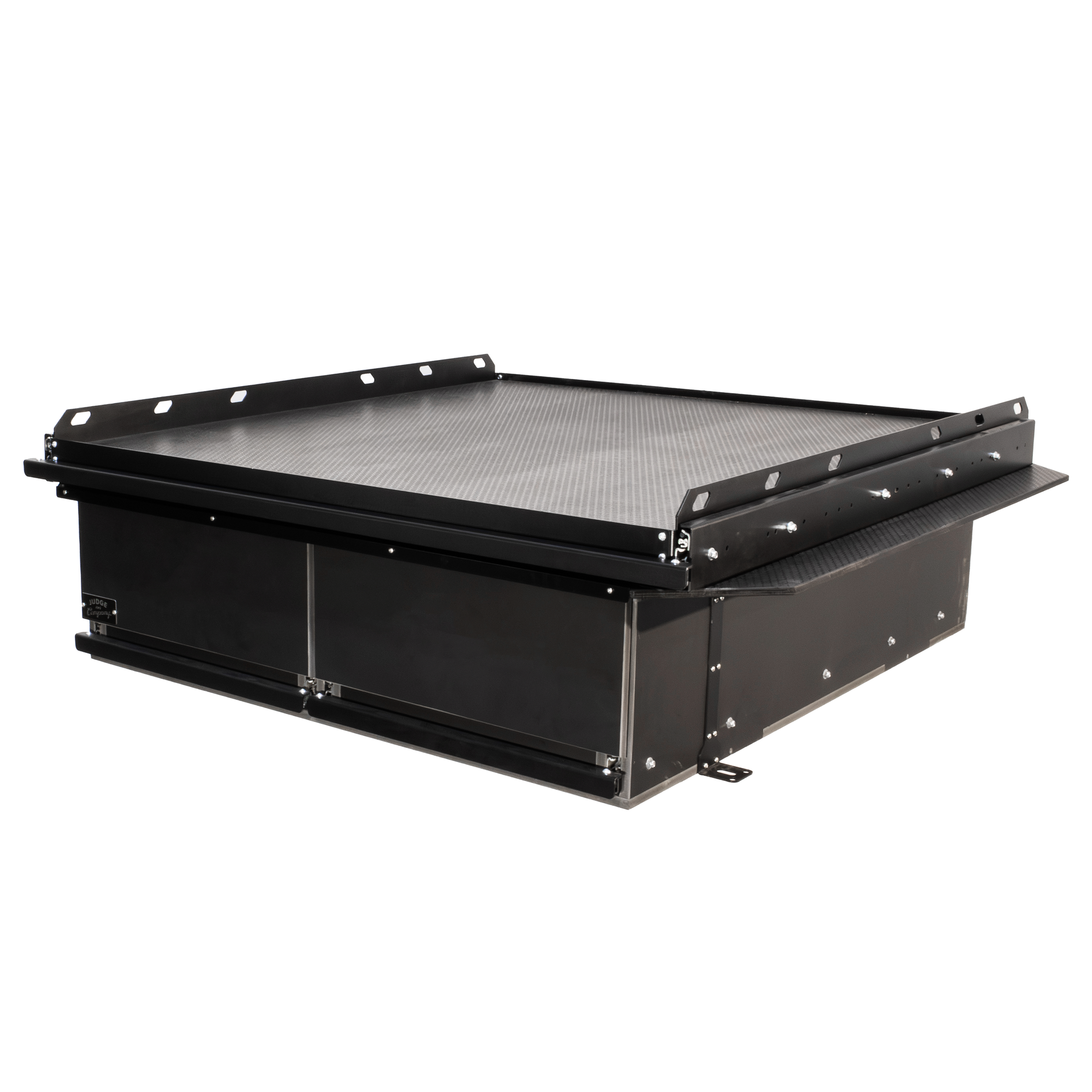

DOUBLE- MID 1100mm external width
The "STD, MID or JUMBO" designation is specific to your vehicle. This maximises the available space between the wheel tubs in your Ute tray or Van floor.
External "footprint" dimensions: 1260mm long (including handle), 1100mm wide.
Internal drawer dimensions: 1165mm long, 450mm wide per drawer
Topper dimensions: 1400mm long, 1440mm wide
- The drawer and carcass are built from precise, CNC-cut 16mm black PVC board, manufactured using a compressed and extruded process.
- The Topper is made from 16mm PPHC - super lightweight but ultra durable
- Our drawer sets are NOT made from plywood — unlike plywood, our material is moisture-resistant, doesn’t splinter or split, is extremely durable yet lightweight, and boasts a sleek, subtle black finish.
- Heavy-duty 227kg-rated runners are used, providing full extension up to 1200mm.
- The convenient one-hand handle activates and deactivates the runners, which lock in three positions: closed, mid-extension, and fully extended.
- Drawer dividers are included, which can be installed wherever you need.
- All necessary mounting hardware is supplied.
Installation is available at our Rocklea, Brisbane based workshop at an additional cost of $99. Please select this option at Checkout.
Natiowide shipping is available, please choose from the options at Checkout.
You can place your order:
Â
- Through our online store
- Over the phone
- Or in person at our workshop or one of our retail partner locations
We’re always happy to chat before you place an order — especially if you have specific layout ideas or unique requirements. Feel free to give us a call to discuss options.
Â
If ordering online:
Â
- Please include your vehicle make/model and phone number in the ‘Add a note’ box at checkout.
- Make sure to also enter your email address, so we can reach you with updates.
- If we haven’t already spoken before you place your order, we’ll follow up via email with the expected turnaround time and details about invoicing.
Â
To secure your spot in our production and installation queue, a 50% deposit will be required.
Â
The 'DOUBLE' is for those who want more storage, more drawers - yet still retain a flat, full width top.
Constructed with 16mm PVC foam board panel and available in multiple dimensions to perfectly pair with your ute, van or wagon. This means they are waterproof, strong & lightweight. We use 3mm powder coated aluminium on our brackets, handles and 'CARGO BAR' perimeter.
Every J&C drawer system utilises heavy duty runners rated to 227kg per pair!
Sleek, secure, and endlessly versatile.
Â
The DOUBLE is our classic and most popular drawer system — delivering heaps of secure, usable storage space with a clean, professional look.
Â
This highly functional setup offers a variety of specs to suit your exact needs — and we even have options for our original non-runner drawer systems.
are you wondering...
What's a SLED?
Stop reaching all the way in! 'The SLED' enables you to bring business to the back!
A simple lift of our one hand operated, full width handle brings your entire trays contents within an arms reach. Available in standard and custom sizes to maximise the space in your vehicles tray.
Constructed from laser cut, CNC folded 3mm powdercoated aluminium and spec'd with our usual HD runners, rated to 227kg
are you also wondering...
What's a VERT drawer?
Great question, The 'Vert Drawer' is what it says on the tin, a Vertical drawer, designed specifically with easy access in mind. A shelf and storage pocket are accessible from your side gullwing, and a huge 1150mm long, 190mm deep, vertical pull-out shelving system.
The bottom shelf measures internally, 285mm high, with top shelf measuring 130mm high.
now you're probably thinking...
Why not both?

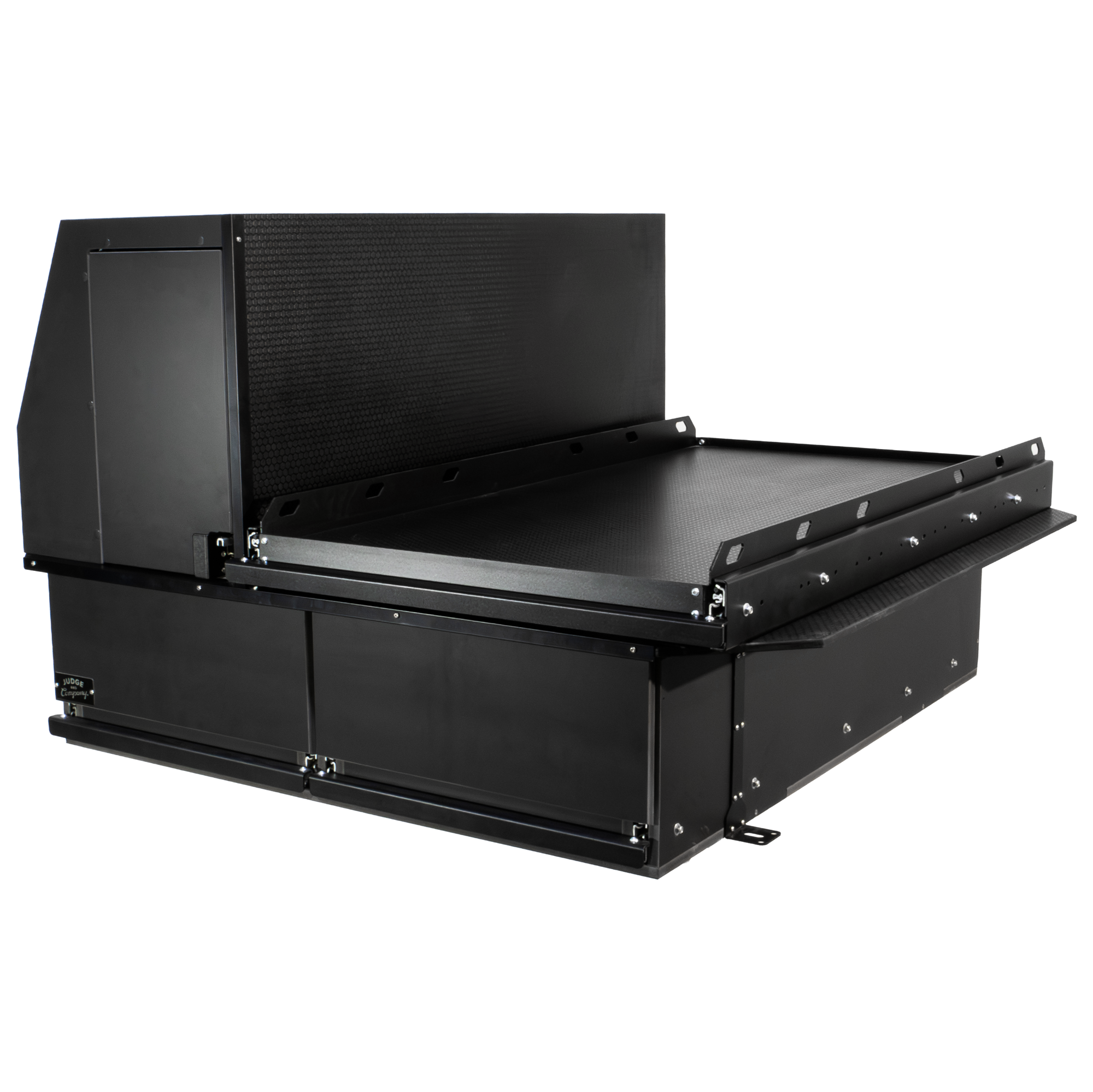

Yes! That's what we think also! Pair the two for the ultimate in vehicle organisation - straight out of the box! We've designed this system to be completely modular - meaning you get the most out of your available space - without paying for a fully bespoke setup!
Hang on a sec...
What's it made from?
This is where we are set apart from everyone else...
No more rusting, corrosion or discolouration. Splitting, splintering and wood rot are a thing of the past. Our 16mm PVC panel, is a strong, waterproof and lightweight solution. Thats correct our drawers are plastic!
A bonus is the sleek black finish meaning no more carpet or paint.
Our handles are constructed from 3mm powder coated aluminium. They're tough, but only need one hand for operation.
Our Heavy Duty runners use a cassette ball bearing system, and are rated to 227kg per pair!
Keyed locks are available as an optional extra!
