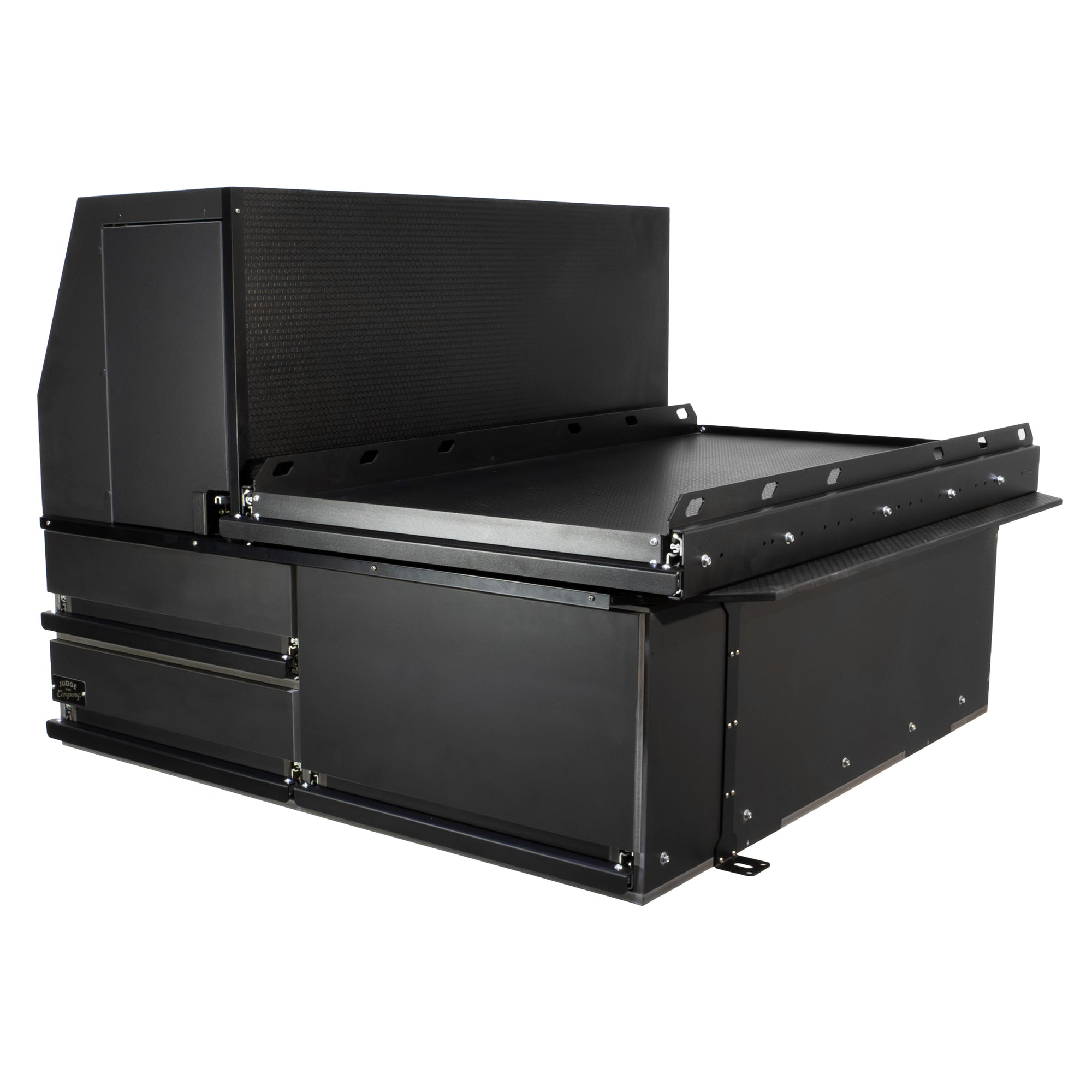

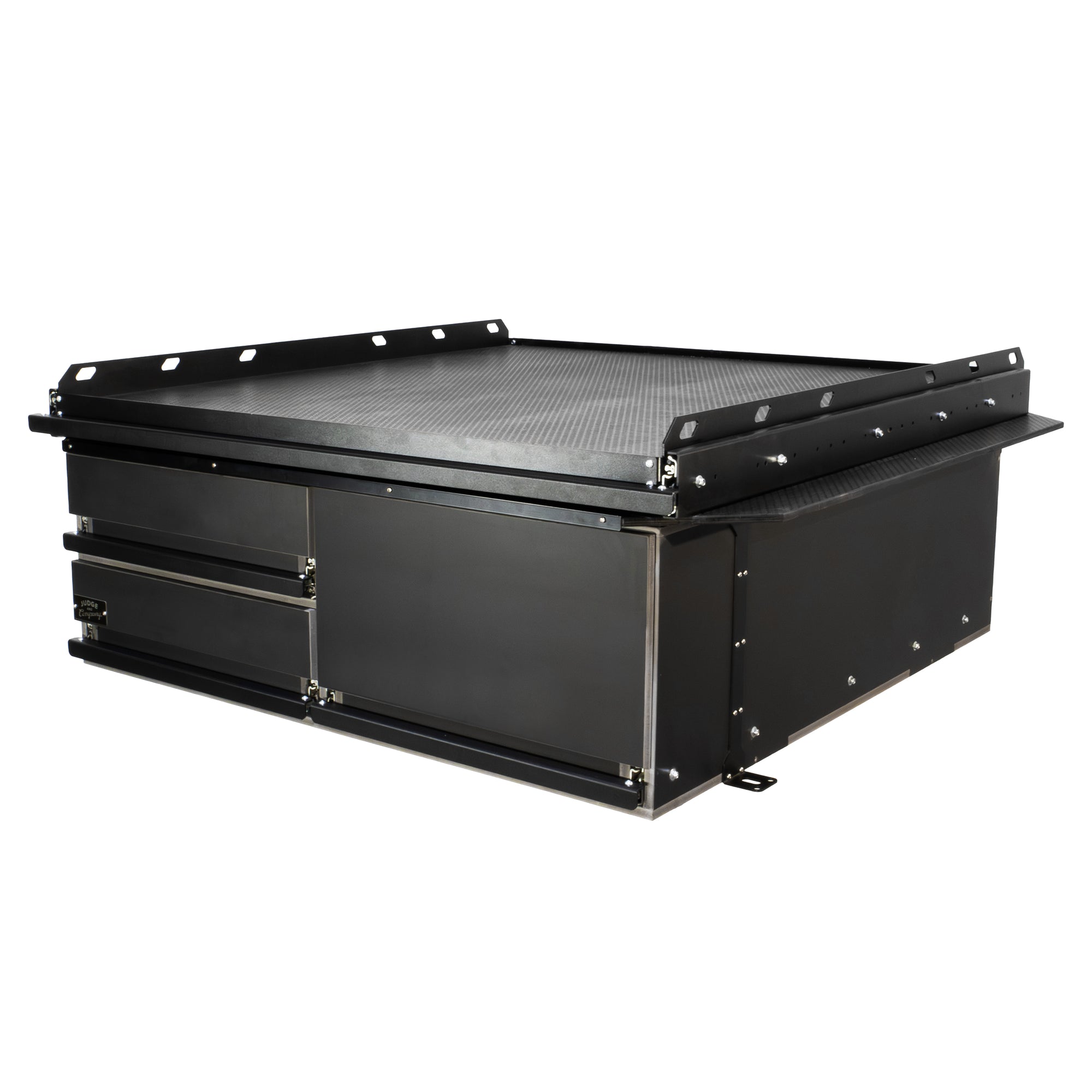

TRIPLEDOUBLE - STD 1000mm external width
The "JUMBO" designation is specific to your vehicle. This maximises the available space between the wheel tubs in your Ute tray or Van floor.
External "footprint" dimensions: 1260mm long (including handle), 1200mm wide.
Internal drawer dimensions: 1165mm long, 500mm wide per drawer
Topper dimensions: 1400mm long, 1440mm wide
- The drawer and carcass are built from precise, CNC-cut 16mm black PVC board, manufactured using a compressed and extruded process.
- The Topper is made from 16mm PPHC - super lightweight but ultra durable
- Our drawer sets are NOT made from plywood — unlike plywood, our material is moisture-resistant, doesn’t splinter or split, is extremely durable yet lightweight, and boasts a sleek, subtle black finish.
- Heavy-duty 227kg-rated runners are used, providing full extension up to 1200mm.
- The convenient one-hand handle activates and deactivates the runners, which lock in three positions: closed, mid-extension, and fully extended.
- Drawer dividers are included, which can be installed wherever you need.
- All necessary mounting hardware is supplied.
Installation is available at our Rocklea, Brisbane based workshop at an additional cost of $99.
We ship nationwide.
Please select your preferred shipping method using the checkboxes when building your Drawer System.
You can place your order:
Â
- Through our online store
- Over the phone
- Or in person at our workshop or one of our retail partner locations
We’re always happy to chat before you place an order — especially if you have specific layout ideas or unique requirements. Feel free to give us a call to discuss options.
Â
If ordering online:
Â
- Please include your vehicle make/model and phone number in the ‘Add a note’ box at checkout.
- Make sure to also enter your email address, so we can reach you with updates.
- If we haven’t already spoken before you place your order, we’ll follow up via email with the expected turnaround time and details about invoicing.
Â
To secure your spot in our production and installation queue, a 50% deposit will be required.
Â
Big storage, smart organisation.
 The TRIPLEDOUBLE builds on the foundation of our popular DOUBLE system by replacing one of the large drawers with a handy two-drawer stack of shallower drawers.
These shallower drawers are perfect for storing smaller items:
For tradies — consumables, hand tools, battery tools, and other essentials.
For campers & lifestyle users — food, recovery gear, camera equipment, fishing gear, surfboard wax, and more.
Why Choose the TRIPLEDOUBLE?
Combines one large, deep drawer with two smaller stacked drawers for better organisation.
Keeps smaller items accessible and separate from larger gear.
Ideal for both work and play — versatile enough for any lifestyle.
Options & UpgradesÂ
Choose from a range of sizes and hardware configurations.
Topper Construction
The false floor (Topper) is engineered to handle plenty of rough use, made from 12mm HEXAply transport-grade plywood — extremely hard-wearing, water-resistant, and easy to clean, with fully sealed edges.
The perimeter Cargo Bar, extending across the rear and sides of the Topper, is laser-cut and CNC-folded 3mm aluminium, finished in a durable, scratch-resistant textured black powder coating.Â
CUSTOM SIZES ARE AVAILABLE - CONTACT US.
Specifications
- The drawer and carcass are built from precise, CNC-cut 16mm black PVC board, manufactured using a compressed and extruded process.
- Our drawer sets are NOT made from plywood — unlike plywood, our material is moisture-resistant, doesn’t splinter or split, is extremely durable yet lightweight, and boasts a sleek, subtle black finish.
- Heavy-duty 227kg-rated runners are used, providing full extension up to 1200mm.
- The convenient one-hand handle activates and deactivates the runners, which lock in three positions: closed, mid-extension, and fully extended.
- Drawer dividers are included, which can be installed wherever you need.
-  All necessary mounting hardware is supplied.
are you wondering...

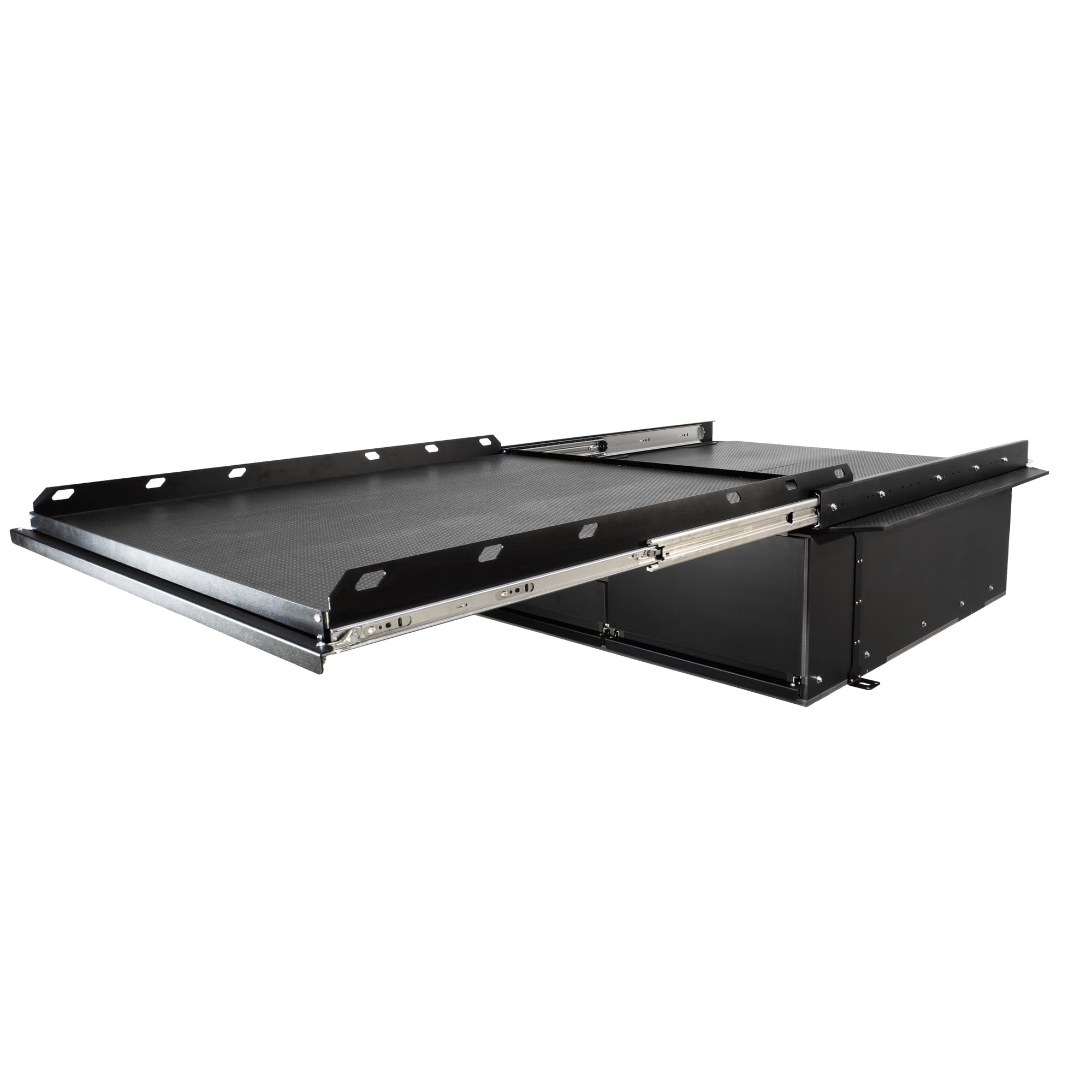

What's a SLED?
Stop reaching all the way in! 'The SLED' enables you to bring business to the back!
A simple lift of our one hand operated, full width handle brings your entire trays contents within an arms reach. Available in standard and custom sizes to maximise the space in your vehicles tray.
Constructed from laser cut, CNC folded 3mm powdercoated aluminium and spec'd with our usual HD runners, rated to 227kg
are you also wondering...

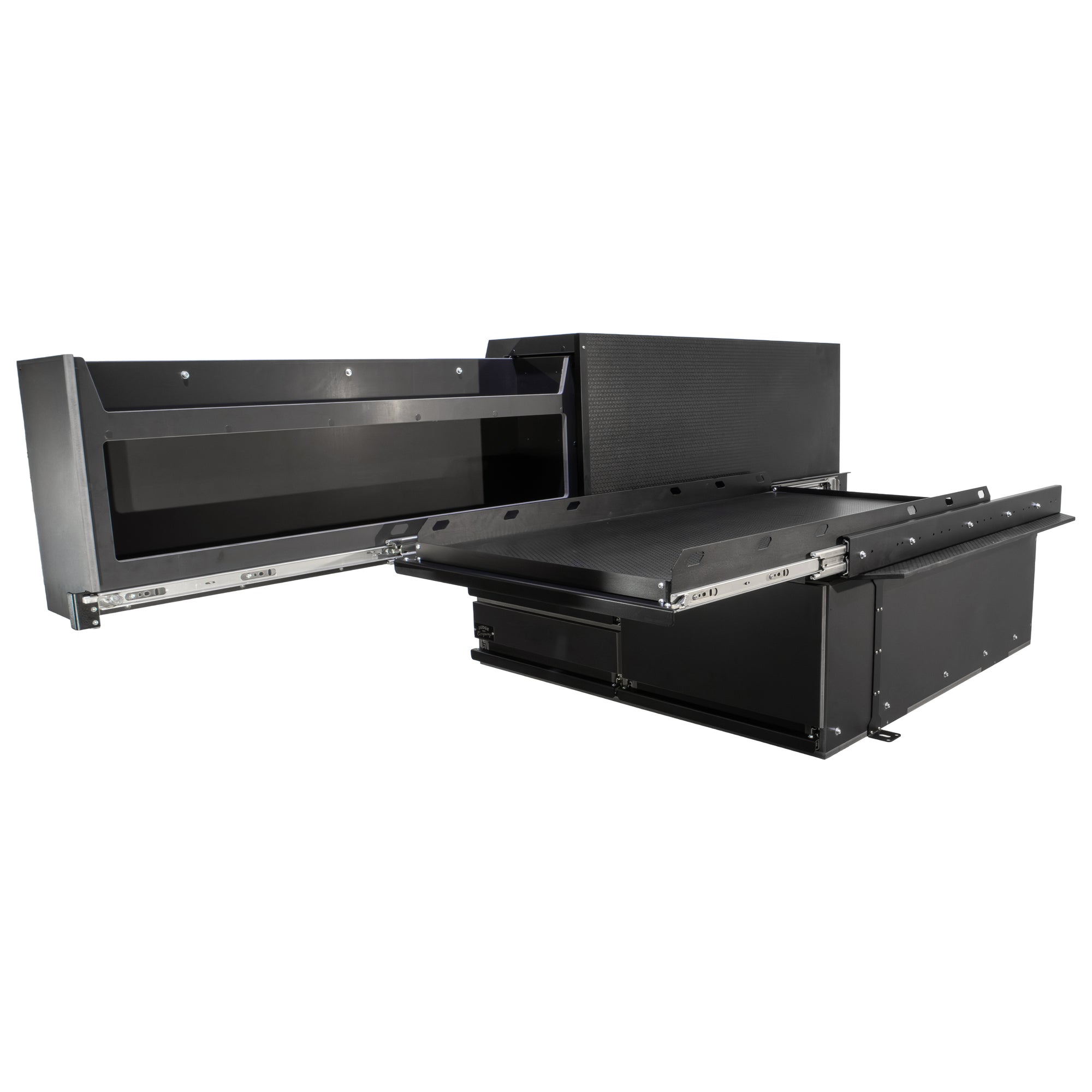

What's a VERT drawer?
Great question, The 'Vert Drawer' is what it says on the tin, a Vertical drawer, designed specifically with easy access in mind. A shelf and storage pocket are accessible from your side gullwing, and a huge 1150mm long, 190mm deep, vertical pull-out shelving system.
The bottom shelf measures internally, 285mm high, with top shelf measuring 130mm high.
now you're probably thinking...
Why not both?
Yes! That's what we think too! Pair the two for the ultimate in vehicle organisation - straight out of the box! We've designed this system to be completely modular - meaning you get the most out of your available space - without paying for a fully bespoke setup!
hang on a sec...
What's it made from?
This is where we are set apart from everyone else...
No more rusting, corrosion or discolouration. Splitting, splintering and wood rot are a thing of the past. Our 16mm PVC panel, is a strong, waterproof and lightweight solution. Thats correct our drawers are plastic!
A bonus is the sleek black finish meaning no more carpet or paint.
Our handles are constructed from 3mm powder coated aluminium. They're tough, but only need one hand for operation.
Our Heavy Duty runners use a cassette ball bearing system, and are rated to 227kg per pair!
Keyed locks are available as an optional extra!
